Running the free trial Delphix engine server, but unfortunately

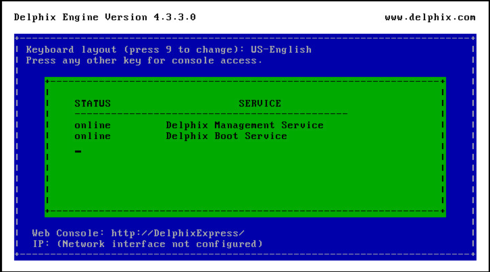

I can't setup the network,At the green console getting "IP: Network Interface not configured"


I running this on the vmware esxi5.5. I tried to  log in to the console as sysadmin, sysadmin@SYSTEM, and update the network, but I get this
">https://d2r1vs3d9006ap.cloudfront.net/s3_images/1530107/RackMultipart20161230-60309-1t2i52u-QQ__20161230172547_inline.png?1483090963">

Any help, gratefully received.
Thanks
Lin

Hi Lin, Can you confirm please that you have configured a network adapter for your VM. you can aloso check Adam's vimeo share (look at 00:60 sec) first video Regards, Mouhssine

I do configured a network adapter for my VM, I use the default settings

and I also watched the video but it doesn't help

Thanks for your responding !

Hi, May i ask for a screenshoot of the engine vm settings with network adapter selected. Mouhssine

Hi, What networks do you have other than "Vm Network" Regards, Mouhssine

no other, just this one

Hi, It dependens on how you deploy your esx network topology, this is a network esx issue for me. Could you investigate it with your VMware admin Regrads, Mouhssine

Hey guys. I remember someone getting this error a couple of years ago. Can you try powering off your VM, deleting both of the existing network adapters, adding a new network adapter, and powering on again?

I do as you said just now, but it doesn't help, and I get this

Wait. I notice in your first image, that you have two network adapters. It seems that you grabbed the VirtualBox ova, and not the VMware ova. The VMware OVA only has one network device. Your OVA should say "Delphix Express 4.3.3.0 VMware.ova" and I would guess your OVA says "Delphix Express 4.3.3.0 for VirtualBox.ova"
