V2p oracle with file mapping

Jump to Best Answer
  • 1.  V2p oracle with file mapping

    Posted 05-30-2016 05:15:00 PM
    Hi, I tried to do a v2p for one of my oracle vdbs, bug got an unexpected result. Assume the following : Dsource datafile location : /u01/oradata Vdb datafile location : /mnt/provision/u01/oradata I hope to convert the vdb to a physical and put my datafile sur under "/u02/oradata". When definig the rule mapping the secreen gives as final result "/u01/oradata/u02/oradata" for the physical datafiles location. In my point of view file mapping should replace the "/u01/oradata" with "/u02/oradata" for the physical database to get datafiles relocate to the specified location. Any idea please. Regards, Mouhssine
    #DemoEnvironment


  • 2.  RE: V2p oracle with file mapping
    Best Answer

    Posted 05-30-2016 11:02:00 PM
    Hi,
    There are a few considerations when customizing your datafile location on your target. The first is the location of your mount base path under which all datafiles are mounted. The second is the location of your data directory.

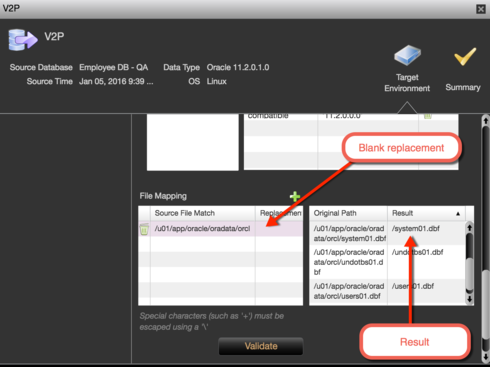

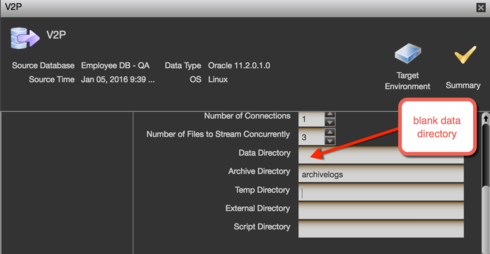

    In order for your file to be placed under /u02/oradata you first need to change your data directory from the default "data" to blank. i.e. files will be placed directly under the mount base path. Next you should customize your file mapping so that your source /u01/oradata is replaced by blank. The result should list your datafile e.g. /system.dbf. Note: this is not the absolute path, but a path under the mount path.

    Here's an example.

    Source files on VDB.
    SQL> select name from v$datafile;
    NAME
    --------------------------------------------------------------------------------
    /mnt/provision/qadb/datafile/u01/app/oracle/oradata/orcl/system01.dbf
    /mnt/provision/qadb/datafile/u01/app/oracle/oradata/orcl/sysaux01.dbf
    /mnt/provision/qadb/datafile/u01/app/oracle/oradata/orcl/undotbs01.dbf
    /mnt/provision/qadb/datafile/u01/app/oracle/oradata/orcl/users01.dbf
    V2P with file customization




    V2P datafiles
    SQL> select name from v$datafile;
    NAME
    --------------------------------------------------------------------------------
    /u02/app/oradata/system01.dbf
    /u02/app/oradata/sysaux01.dbf
    /u02/app/oradata/undotbs01.dbf
    /u02/app/oradata/users01.dbf
    See the documentation for details.

    Regards,
    Leighton


  • 3.  RE: V2p oracle with file mapping

    Posted 05-31-2016 10:57:00 AM
    Hi Leighton, I checked out with my end customer and found that he hase a specefique nomenclature. Eg : location for system files : /u02/oradata/sys location for undo files : /u02/oradata/undo location for temp files : /u02/oradata/tmp location for app files : /u02/oradata/apps location for index files : /u02/oradata/idx Let me know if i understood the documentation to get this result : I have to set as target directory "/u02/oradata" and do file mapping by specifying each file with the eaxh subdirectory (sys, undo, tmp, apps and idx). I'm i right. Regards, Mouhssine


  • 4.  RE: V2p oracle with file mapping
    Best Answer

    Posted 05-31-2016 01:43:00 PM
    That's correct. You will need to map each datafile so that they point to a different directory to match the desired target nomenclature.

    Regards,
    Leighton


  • 5.  RE: V2p oracle with file mapping

    Posted 05-31-2016 01:55:00 PM
    Great
